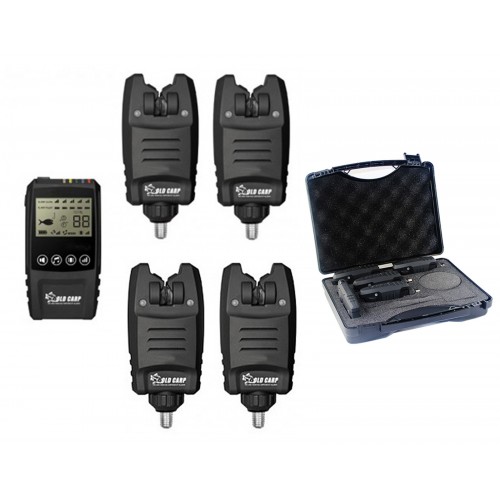

Item No.:K001 wireless bite alarm
1\ Manual Power Switch
“ Power on”:Push up
“Power off”:Push down
2\ Volume Button
Push “V” button to change the volume “Low” “Medium” “High”
3\Tone Button
Push “T” button to change the tone “Low” “Medium” “High” ”Ultra high”
4\Sensitivity Button
5\Nightlight Button
6\ Power out socket (for hanger/swinger)
7\ Interchangeable LED cap
8\20 seconds latching LED
9\ Requires 1*9V battery.
Item No.: FM02 wireless receiver
1\ Manual Power Switch
2\Volume + button
Push to change the volume “Low” “Medium” “High” ”Ultra high”
3\Volume - button
Push to change the volume “Ultra high” “High” “Medium” “Low”
4\20 seconds latching LED
5\ Requires 1*9V battery.
6\Learn Button
A. How to make the Receiver match up with Bite Alarm
1. Press the Learn Button of Receiver in 3 seconds
2. Press button V+/V- of Receiver to adjust the LED of Pre-set.
3 Press the Learn Button of Receiver again to confirm.
4. Pull the wheel of bite indicator which is matching up with LED, if hear two continuous voice “di di”,it shows successful.
5. Check and test if the receiving function is OK.
B.How to eliminate all the ID CODEs in Receiver.
1. Press Learn Button in 10 seconds
2. Hear continuous voice of “di di di di di di”. That shows all the ID codes are eliminated.
1) Night-light wheel.
2) Synchronous transmission technology.
When the alarm action, the receiver in step with alarm.
3) Easy registration.
The alarm have a unique ID,the receiver can register the unique ID
4) Multi-color LED.
Seven different colors of your choice
5) Low-Power.
Use 9v battery .alarm can work 120 Days
6)100% waterproof
Alarm is waterproof. Even in the rainy day, you still can be at ease use
7) Stainless steel standard screw
8)Long range transmittal.
More than 100M in a non-disturbed area.
9) Adjustable volume,sensitivity and Tone.
10) Power-out socket for illuminated hangers.
11) Direction holder.
12) alarm wheel foreward / reversal
Receiver function specification
A. How to register
1. Press the Learn Button of Receiver in 3 seconds
2. Press Head button of Receiver to adjust the LED of Pre-set.
3 Press the Learn Button of Receiver again to confirm.
4. Pull the wheel of bite indicator which is matching up with LED, if hear two continuous voice di di...., it shows successful.
5. Check and test if the receiving function is OK.
B.How to eliminate all the ID CODEs in Receiver.
1. Press Learn Button in 10 seconds
2. Hear continuous voice of di di di di di di... That shows all the ID codes are eliminated.
1) Easy register.
The alarm have a unique ID,the receiver can register the unique ID.
It can register five bite alarm.
2) Manual ON/OFF switch.
3) Low-Power. Use 1.5 AAA battery, it can work 24 Days.
4) Long range transmittal. More than 100M in a non-disturbed area.
5) Adjustable volume and Tone.
6) Vibrational mode.
7) Display alarm message
a) alarm signal strength
b) alarm battery level
c) alarm bite counts.
d) alarm wheel foreward / reversal
8)Display receiver message
a) receiver battery level
b) receiver volume
c) receiver tone
d) receiver vibrate
9) Touch key
a) volume control
c) tone control
d) virate control
e) select to view which alarm information
